Model |
Voltage VAC
|
Freq. Hz
|
Current A
|
Power W
|
Speed rpm
|
Pressure mmAq
|
Air Flow CFM
|
Noise dB
|
|
|
High Speed |
|
|
|
|
|
|
|
|
|
|
A12038-V1UBxP |
115 |
50 / 60 |
0.27 / 0.23 |
20.0 / 18.0 |
2500 / 2700 |
6.7 / 8.0 |
93 / 115 |
40 |
|
|
A12038-V2UBxP |
220 |
50 / 60 |
0.14 / 0.12 |
20.0 / 18.0 |
2500 / 2700 |
6.7 / 8.0 |
93 / 115 |
40 |
|
|
A12038-V1USxP |
115 |
50 / 60 |
0.27 / 0.23 |
20.0 / 18.0 |
2500 / 2700 |
6.7 / 8.0 |
93 / 115 |
40 |
|
|
A12038-V2USxP |
220 |
50 / 60 |
0.14 / 0.12 |
20.0 / 18.0 |
2500 / 2700 |
6.7 / 8.0 |
93 / 115 |
40 |
|
x : T (Terminals) , L (Lead Wire)
多款風機有售，全新原裝正品，歡迎點擊?恒瑞宏晟

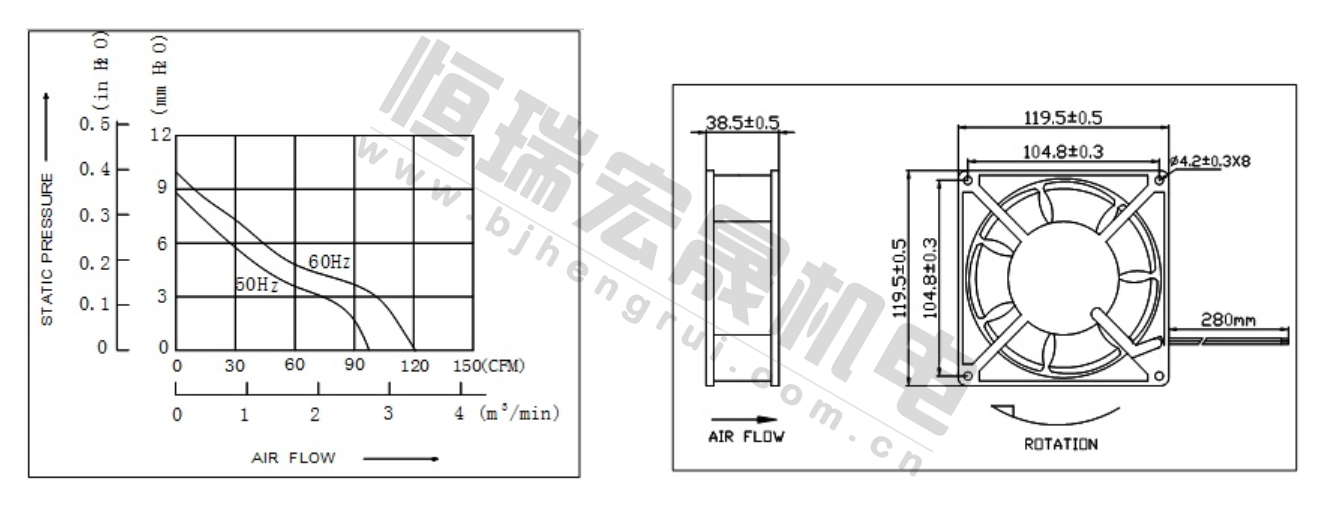

| SIZE | 120x120x38 |
| MATERIAL | Aluminum Housing, Plastic Impeller |
| BEARINGS | Maintenance-Free Ball Bearings |
| MOTOR TYPE | AC shaded-pole motor |
| CONNECTION | Terminals or Lead wire |
| DIELECTRIC STRENGTH | 1800 VAC for 1 Sec. |
| INSULATION RESISTANCE | 100 MΩ min.@500VDC |
| OPERATING TEMPERATURE | -30℃ to +75℃ |
| TYPE OF PROTECTION | Insulation Class B |
| SAFETY | Impedance Protected |
| WEIGHT | |
| ROHS COMPLIANCE | Yes |
